任务运行器#

¥Task runners

任务运行器是一种通用的机制，用于以安全高效的方式执行任务。它们用于在 代码节点 中执行用户提供的 JavaScript 和 Python 代码。

¥Task runners are a generic mechanism to execute tasks in a secure and performant way. They're used to execute user-provided JavaScript and Python code in the Code node.

本文档描述了任务运行器的工作原理以及如何配置它们。

¥This document describes how task runners work and how you can configure them.

怎么运行的#

¥How it works

任务运行器功能包含以下组件：一个或多个任务运行器、一个任务代理和一个任务请求器。

¥The task runner feature consists of these components: one or more task runners, a task broker, and a task requester.

Task runner overview

任务运行器使用 WebSocket 连接连接到任务代理。任务请求者向代理提交任务请求，可用的任务运行器可以从中获取并执行该请求。

¥Task runners connect to the task broker using a websocket connection. A task requester submits a task request to the broker where an available task runner can pick it up for execution.

运行器执行任务并将结果提交给任务请求者。任务代理负责协调运行程序和请求程序之间的通信。

¥The runner executes the task and submits the results to the task requester. The task broker coordinates communication between the runner and the requester.

n8n 实例（主实例和工作实例）充当代理。在这种情况下，代码节点是任务请求者。

¥The n8n instance (main and worker) acts as the broker. The Code node in this case is the task requester.

任务运行器模式#

¥Task runner modes

任务运行器有两种不同的使用模式：内部和外部。

¥You can use task runners in two different modes: internal and external.

内部模式#

¥Internal mode

在内部模式下，n8n 实例会将任务运行器作为子进程启动。n8n 进程监控和管理任务运行器的生命周期。任务运行器进程与 n8n 共享相同的 uid 和 gid。不建议在生产环境中使用。

¥In internal mode, the n8n instance launches the task runner as a child process. The n8n process monitors and manages the life cycle of the task runner. The task runner process shares the same uid and gid as n8n. This is not recommended for production.

外部模式#

¥External mode

在外部模式下，启动器应用 会按需启动任务运行器并管理其生命周期。通常，这意味着除了 n8n 之外，你还需要添加一个运行 n8nio/runners 镜像的 sidecar 容器，该镜像包含启动器、JS 任务运行器和 Python 任务运行器。此边车容器独立于 n8n 实例。

¥In external mode, a launcher application launches task runners on demand and manages their lifecycle. Typically, this means that next to n8n you add a sidecar container running the n8nio/runners image containing the launcher, the JS task runner and the Python task runner. This sidecar container is independent from the n8n instance.

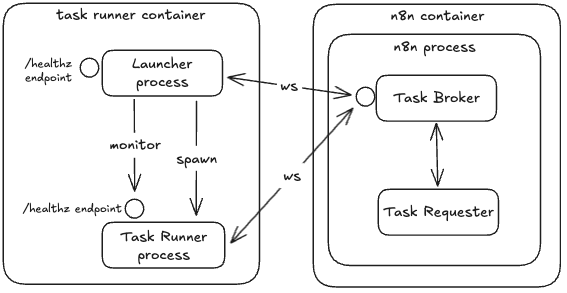

Task runner deployed as a side-car container

使用 队列模式 时，每个工作进程都需要有自己的 sidecar 容器来运行任务。

¥When using Queue mode, each worker needs to have its own sidecar container for task runners.

此外，如果你尚未启用将手动执行任务卸载到工作节点（即你的配置中未设置 OFFLOAD_MANUAL_EXECUTIONS_TO_WORKERS=true），则你的主实例将运行手动执行任务，并且还需要自己的边车容器来运行任务运行器。请注意，不建议在生产环境中禁用卸载功能来运行 n8n。

¥In addition, if you haven't enabled offloading manual executions to workers (if you aren't setting OFFLOAD_MANUAL_EXECUTIONS_TO_WORKERS=true in your configuration), then your main instance will run manual executions and needs its own sidecar container for task runners as well. Please note that running n8n with offloading disabled isn't recommended for production.

设置外部模式#

¥Setting up external mode

在外部模式下，你需要将 n8nio/runners 镜像作为 n8n 旁边的 sidecar 容器运行。下方是一个 Docker Compose 文件作为参考。请注意，n8nio/runners 镜像版本必须与 n8nio/n8n 镜像版本匹配，并且 n8n 版本必须 >= 1.111.0。

¥In external mode, you run the n8nio/runners image as a sidecar container next to n8n. Below you will find a docker compose as a reference. Keep in mind that the n8nio/runners image version must match that of the n8nio/n8n image, and the n8n version must be >=1.111.0.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
services:
  n8n:
    image: n8nio/n8n:1.111.0
    container_name: n8n-main
    environment:
      - N8N_RUNNERS_ENABLED=true
      - N8N_RUNNERS_MODE=external
      - N8N_RUNNERS_BROKER_LISTEN_ADDRESS=0.0.0.0
      - N8N_RUNNERS_AUTH_TOKEN=your-secret-here
      - N8N_NATIVE_PYTHON_RUNNER=true
    ports:
      - "5678:5678"
    volumes:
      - n8n_data:/home/node/.n8n
    # etc.

  task-runners:
    image: n8nio/runners:1.111.0
    container_name: n8n-runners
    environment:
      - N8N_RUNNERS_TASK_BROKER_URI=http://n8n-main:5679
      - N8N_RUNNERS_AUTH_TOKEN=your-secret-here
      # etc.
    depends_on:
      - n8n

volumes:
  n8n_data:

配置分为三层：n8n 容器、运行器容器以及运行器容器内的启动器。

¥There are three layers of configuration: the n8n container, the runners container, and the launcher inside the runners container.

配置 n8n 容器处于外部模式#

¥Configuring n8n container in external mode

以下是可以在外部模式下运行的 n8n 容器上设置的主要环境变量：

¥These are the main environment variables that you can set on the n8n container running in external mode:

环境变量 描述
N8N_RUNNERS_ENABLED=true 启用任务运行程序。
N8N_RUNNERS_MODE=external 在外部模式下使用任务运行器。
N8N_RUNNERS_AUTH_TOKEN=<random secure shared secret> 任务运行程序用于连接到代理的共享密钥。
N8N_RUNNERS_BROKER_LISTEN_ADDRESS=0.0.0.0 默认情况下，任务代理仅监听本地主机。使用多个容器（例如，使用 Docker Compose）时，需要能够接受外部连接。

有关环境变量的完整列表，请参阅 任务运行器环境变量。

¥For full list of environment variables see task runner environment variables.

正在配置 runners 容器处于外部模式#

¥Configuring runners container in external mode

以下是可以在外部模式下运行的 runners 容器上设置的主要环境变量：

¥These are the main environment variables that you can set on the runners container running in external mode:

环境变量 描述
N8N_RUNNERS_AUTH_TOKEN=<random secure shared secret> 任务运行器用于连接到代理的共享密钥。
N8N_RUNNERS_TASK_BROKER_URI=localhost:5679 n8n 实例中任务代理服务器的地址。
N8N_RUNNERS_AUTO_SHUTDOWN_TIMEOUT=15 任务运行程序进程关闭前等待的非活动秒数。当有新任务要执行时，启动器将自动重新启动运行器。设置为 0 可禁用自动关机。

有关环境变量的完整列表，请参阅 任务运行器环境变量。

¥For full list of environment variables see task runner environment variables.

在外部模式下配置 Runner 容器中的启动器#

¥Configuring launcher in runners container in external mode

启动器从运行器的容器环境中读取环境变量，并执行以下操作：

¥The launcher reads environment variables from runners container environment, and performs the following actions:

  • 将启动器自身环境中的环境变量传递给所有运行器 (allowed-env)。

¥Passing environment variables from the launcher's own environment to all runners (allowed-env)

  • 在特定运行器 (env-overrides) 上设置特定的环境变量

¥Setting specific environment variables on specific runners (env-overrides)

要传递和设置哪些环境变量，这些都定义在运行器镜像中包含的 启动器配置文件 文件中。此配置文件位于容器的 /etc/task-runners.json 处。要了解有关启动器配置文件的更多信息，请参阅 配置文件文档。

¥Which environment variables to pass and to set are defined in the launcher config file included in the runners image. This config file is located in the container at /etc/task-runners.json. To learn more about the launcher config file, refer to the Config file documentation.

默认启动器配置文件已锁定，但你可以编辑此文件，例如，将其添加到允许列表，以允许第一方或第三方模块。自定义启动器配置文件，请挂载到此路径：

¥The default launcher configuration file is locked down, but you can edit this file, for example, to allowlist first- or third-party modules. To customize the launcher configuration file, mount to this path:

1
path/to/n8n-task-runners.json:/etc/n8n-task-runners.json

添加额外依赖#

¥Adding extra dependencies

1. 扩展 n8nio/runners 镜像#

¥ Extend the n8nio/runners image

你可以扩展 n8nio/runners 镜像，为运行器添加额外的依赖。你需要 n8nio/runners:1.121.0 或更高版本才能执行此操作。

¥You can extend the n8nio/runners image to add extra dependencies to the runners. You'll need n8nio/runners:1.121.0 or later to do this.

1
2
3
4
5
6
FROM n8nio/runners:1.121.0
USER root
RUN cd /opt/runners/task-runner-javascript && pnpm add moment uuid
RUN cd /opt/runners/task-runner-python && uv pip install numpy pandas
COPY n8n-task-runners.json /etc/n8n-task-runners.json
USER runner

你还必须将代码节点使用的所有第一方或第三方软件包添加到允许列表中。编辑配置文件 n8n-task-runners.json，将软件包包含在你的扩展镜像中。

¥You must also allowlist any first-party or third-party packages for use by the Code node. Do this by editing the configuration file n8n-task-runners.json to include the packages in your extended image.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
{
  "task-runners": [
    {
      "runner-type": "javascript",
      "env-overrides": {
        "NODE_FUNCTION_ALLOW_BUILTIN": "crypto",         // <-- allowlist Node.js builtin modules here
        "NODE_FUNCTION_ALLOW_EXTERNAL": "moment,uuid",   // <-- allowlist third-party JS packages here
      }
    },
    {
      "runner-type": "python",
      "env-overrides": {
        "PYTHONPATH": "/opt/runners/task-runner-python",
        "N8N_RUNNERS_STDLIB_ALLOW": "json",              // <-- allowlist Python standard library packages here
        "N8N_RUNNERS_EXTERNAL_ALLOW": "numpy,pandas"     // <-- allowlist third-party Python packages here
      }
    }
  ]
}
  • NODE_FUNCTION_ALLOW_BUILTIN：允许使用的 Node 内置模块列表（以逗号分隔）。

¥NODE_FUNCTION_ALLOW_BUILTIN: comma-separated list of allowed node builtin modules.

  • NODE_FUNCTION_ALLOW_EXTERNAL：允许使用的 JS 包列表（以逗号分隔）。

¥NODE_FUNCTION_ALLOW_EXTERNAL: comma-separated list of allowed JS packages.

  • N8N_RUNNERS_STDLIB_ALLOW：允许使用的 Python 标准库包列表（以逗号分隔）。

¥N8N_RUNNERS_STDLIB_ALLOW: comma-separated list of allowed Python standard library packages.

  • N8N_RUNNERS_EXTERNAL_ALLOW：允许使用的 Python 包列表（以逗号分隔）。

¥N8N_RUNNERS_EXTERNAL_ALLOW: comma-separated list of allowed Python packages.

2. 构建自定义镜像#

¥ Build your custom image

例如，从 n8n 存储库根目录：

¥For example, from the n8n repository root:

1
2
3
4
docker buildx build \
  -f docker/images/runners/Dockerfile \
  -t n8nio/runners:custom \
  .

3. 运行镜像#

¥ Run the image

例如：

¥For example:

1
2
3
4
5
6
docker run --rm -it \
  -e N8N_RUNNERS_AUTH_TOKEN=test \
  -e N8N_RUNNERS_LAUNCHER_LOG_LEVEL=debug \
  -e N8N_RUNNERS_TASK_BROKER_URI=http://host.docker.internal:5679 \
  -p 5680:5680 \
  n8nio/runners:custom
